Backward

compatibility



SimplAir-EC spare parts are backward compatible with the VARIO II, VARIO, and G-4 series. This allows you to not only repair your old unit but also upgrade it at the same time.

OVERVIEW SPARE PARTS G-4, VARIO & VARIO II

Required articles per series

You can find a clear overview of the individual items you need for each device type here.

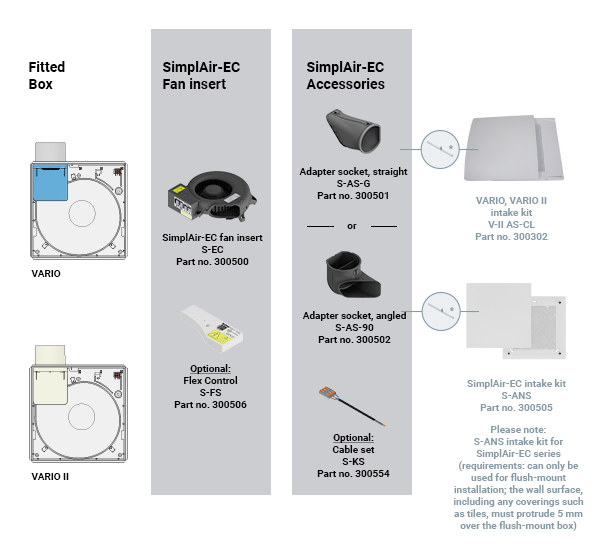

Backward compatibility overview

* Central cover holder, S-ZDH, part no. 300504
** Please check whether the ‘old’ blower unit is attached with snap-on plates! If not, the snap-on plate retrofit set type S-SPN-G4 is also required.

OVERVIEW of possible spare parts

For the series G-4

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • optional: flex control S-FS, Art.-No.: 300506
  • Adapter socket G-4, S-AS-G4, Art.-No.: 300503
  • optional: kable set S-KS, Art.-No.: 300554
  • G-4 intake set ASG, Art.-No.: 300328
  • alternatively: central cover holder S-ZDH, Art.-No. 300504 together with VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • mandatory: flex control S-FS, Art.-No.: 300506
  • Adapter socket G-4, S-AS-G4, Art.-No.: 300503
  • optional: kable set S-KS, Art.-No.: 300554
  • G-4 intake set ASG, Art.-No.: 300328
  • alternatively: central cover holder S-ZDH, Art.-No. 300504 together with VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302

OVERVIEW of possible spare parts

For the series VARIO

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • optional: flex control S-FS, Art.-No.: 300506
  • Straight adapter socket S-AG-G, Art.-No.: 300501 or angled adapter socket S-AS-90, Art.-N0.: 300502
  • optional: kable set S-KS, Art.-No.: 300554
  • central cover holder S-ZDH, Art.-No. 300504
  • VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302
  • or - only for flush-mounted installation - SimplAir-EC intake set S-ANS, Art.-No. 300505

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • mandatory: flex control S-FS, Art.-No.: 300506
  • Straight adapter socket S-AG-G, Art.-No.: 300501 or angled adapter socket S-AS-90, Art.-N0.: 300502
  • optional: kable set S-KS, Art.-No.: 300554
  • central cover holder S-ZDH, Art.-No. 300504
  • VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302
  • or - only for flush-mounted installation - SimplAir-EC intake set S-ANS, Art.-No. 300505

* Wireless motion detector required or on-site

* Central cover holder, S-ZDH, part no. 300504

* Central cover holder, S-ZDH, part no. 300504

OVERVIEW of possible spare parts

For the series VARIO II

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • optional: flex control S-FS, Art.-No.: 300506
  • Straight adapter socket S-AG-G, Art.-No.: 300501 or angled adapter socket S-AS-90, Art.-N0.: 300502
  • optional: kable set S-KS, Art.-No.: 300554
  • central cover holder S-ZDH, Art.-No. 300504
  • VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302
  • or - only for flush-mounted installation - SimplAir-EC intake set S-ANS, Art.-No. 300505

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • mandatory: flex control S-FS, Art.-No.: 300506
  • Straight adapter socket S-AG-G, Art.-No.: 300501 or angled adapter socket S-AS-90, Art.-N0.: 300502
  • optional: kable set S-KS, Art.-No.: 300554
  • central cover holder S-ZDH, Art.-No. 300504
  • VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302
  • or - only for flush-mounted installation - SimplAir-EC intake set S-ANS, Art.-No. 300505

  • Fan insert SimplAir-EC S-EC, Art.-No.: 300500
  • mandatory: flex control S-FS, Art.-No.: 300506
  • Straight adapter socket S-AG-G, Art.-No.: 300501 or angled adapter socket S-AS-90, Art.-N0.: 300502
  • optional: kable set S-KS, Art.-No.: 300554
  • central cover holder S-ZDH, Art.-No. 300504
  • VARIO, VARIO II intake set V-II AS-CL, Art.-No. 300302
  • or - only for flush-mounted installation - SimplAir-EC intake set S-ANS, Art.-No. 300505

* Wireless motion detector required or on-site
